Enhanced TDS
Identification & Functionality
- Chemical Family
- RTU Product Type
- Technologies
- Product Families
Features & Benefits
- Ready-to-Use Product Features
- Product Benefits
- Fast curing at room temperature
- Wide range of bonding properties
- Good bonding strength
- Excellent toughness
- Excellent fatigue resistance
Applications & Uses
- Markets
- Applications
- Application Area
- Compatible Substrates & Surfaces
- Application Instructions
- Bonding surfaces should be clean and free of grease for best performance.
- Mixing part A and part B in the correct ratio and mix thoroughly. Once mixed, it should achieve a uniform color. It is recommended that either mixing equipment or cartridges with static mix nozzles can be used to properly ratio and dispense the adhesive.
- Applying adhesive on the bonding surface.
- To assure maximum bond strength, surfaces must be mated within the working time.
Properties
- Component A
Value Units Test Method / Conditions Viscosity (5# rotor, 5 rpm) 20,000 - 80,000 mPa·s HB DVII Viscometer Density 0.98 g/cm³ ASTM D1875 (GB/T 13354) - Component B
Value Units Test Method / Conditions Viscosity (5# rotor, 5 rpm) 30,000 - 80,000 mPa·s HB DVII Viscometer Density 1.03 g/cm³ ASTM D1875 (GB/T 13354) - Thermal Properties
Value Units Test Method / Conditions Thermal Service Range -40 to 150 °C - - Cured Mechanical Properties
Value Units Test Method / Conditions Tensile Strength 25.0 MPa IDT ISO 5271 (GB/T 1040.1) Elongation (Break) 20 % IDT ISO 5271 (GB/T 1040.1) Lap Shear Strength 20.0 MPa IDT ISO 4587 (GB/T 7124) Lap Shear Strength (Aluminum-Aluminum 5754) 23.0 CF MPa IDT ISO 4587 (GB/T 7124) Lap Shear Strength (Carbon Steel-Carbon Steel) 32.0 CF MPa IDT ISO 4587 (GB/T 7124) Lap Shear Strength (FR4-FR4) 12.0 CF MPa IDT ISO 4587 (GB/T 7124) Lap Shear Strength (ABS-ABS) 5.8 SF MPa IDT ISO 4587 (GB/T 7124) Lap Shear Strength PC 10.0 SF MPa IDT ISO 4587 (GB/T 7124) T-Peel Strength (Aluminum 5754) 6.0 N/mm ISO 11338 (GB/T 2791) - Technical Data
Value Units Test Method / Conditions Curing Profile (at 23°C) 24 hr - Mix ratio (A:B) 10:1 By volume - Mix ratio (A:B) 9:1 By weight - Storage Temperature 8 - 25 °C - - Cured Properties
Value Units Test Method / Conditions Working Time approx. 4 - 6 min - Setting Time approx. 8 - 10 min -
Technical Details & Test Data

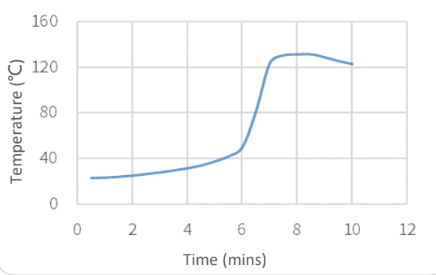

- Typical Exotherm Curve 23°C/10g
Packaging & Availability
- Regional Availability
- Packaging Information
Order No. Package Size 08280207 490 mL/Cartridge
08280208 490 mL/Cartridge
08280215A Part A 5 Gal/Pail Part A
08280515B Part B 5 Gal/Pail Part B
Storage & Handling
- Shelf Life
- 9 months
- Storage Condition
- Product should be stored between 8°C and 25°C. Continuous storage above 25°C reduces the shelf life of the materials. Do not freeze.
- Shelf Life: 9 months from date of manufacture in original container.
