Enhanced TDS
Identification & Functionality
- Chemical Family
- RTU Product Type
- Technologies
- Product Families
Features & Benefits
Applications & Uses
- Markets
- Applications
- Application Area
- Compatible Substrates & Surfaces
- Application Instructions
- Bonding surfaces should be clean and free of grease for best performance.
- Mixing part A and part B in the correct ratio and mix thoroughly. Once mixed, it should achieve a uniform color. It is recommended that either mixing equipment or cartridges with static mix nozzles can be used to properly ratio and dispense the adhesive.
- Applying adhesive on the bonding surface.
- To assure maximum bond strength, surfaces must be mated within the working time.
Properties
- Component A
Value Units Test Method / Conditions Viscosity (#7, 20rpm) approx. 250,000 - 400,000 mPa·s Brookfield DVII Density 1.01 g/cm³ ASTM D1875 (GB/T 13354) - Component B
Value Units Test Method / Conditions Viscosity (#7, 20rpm) approx. 250,000 - 400,000 mPa·s Brookfield DVII Density 0.98 g/cm³ ASTM D1875 (GB/T 13354) - Cured Mechanical Properties
Value Units Test Method / Conditions Tensile Strength 20.0 MPa IDT ISO 5271, GB/T 1040.1 Elongation (Break) 30 % IDT ISO 5271, GB/T 1040.1 Lap Shear Strength (Aluminum-Aluminum 5754) 19.5 CF IDT ISO 4587, GB/T 7124 Lap Shear Strength (Carbon Steel-Carbon Steel) 28.0 CF IDT ISO 4587, GB/T 7124 Lap Shear Strength (FR4) 12.5 CF IDT ISO 4587, GB/T 7124 T-Peel Strength (Aluminum, 5754) 3.0 N/mm ISO 11339, GB/T 2791 - Technical Data
Value Units Test Method / Conditions Mix ratio (A:B) 1:1 By volume - Working Time approx. 8 - 14 min - Setting Time approx. 20 - 30 min - Curing Profile (at 23°C) 24 hr - Storage Temperature 8 - 28 °C - Thermal Service Range approx. -40 to 150 - -
Technical Details & Test Data

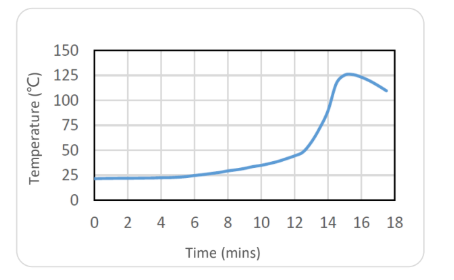

- Typical Exotherm Curve (23°C/10g)
Packaging & Availability
- Regional Availability
- Packaging Information
Order No. Package Size 28050203 400 mL/Cartridge
28050210A 2.5 kg/Pail Part A
28050210B 2.5 kg/Pail Part B
Storage & Handling
- Shelf Life
- 12 months
- Storage Condition
Product should be stored between 8°C and 25°C, Continuous storage above 25°C reduces the shelf life of the materials. Do not freeze. Shelf Life: 12 months from date of manufacture in original
